Pure Sine Wave Solar Power Inverter 4 - 5KVA Hybrid Optional Remote Control Panel

Product Categories
Shenzhen Consnant Technology Co., Ltd.
Contact Now

Pure Sine Wave Solar Power Inverter 4 - 5KVA Hybrid Optional Remote Control Panel

  • 1
  • 2

Brand Name : CONSNANT

Model Number : CNS114

Certification : CE, ISO

Place of Origin : Shenzhen, China

MOQ : 10

Price : US$378-470 / piece

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50000 pieces per year

Delivery Time : 7 days for sample; 7-120days for mass production

Packaging Details : Export Standard Package

AC Input Nominal input voltage : 230VAC

AC Input Frequency : 50Hz/60Hz(Auto detection)

AC Output Voltage Regulation (Batt.Mode) : 230VAC±5%

Output Voltage Waveform : Pure sine wave

Transfer Time : 10ms(for personal computer); 20ms(for home appliances)

Full load efficiency : 93%

MPPT Range Operating Voltage : 60VDC~115VDC

Maximum PV Array Open Circuit Voltage : 145VDC

Maximum Solar Charge Current : 80A

Maximum AC Charge Current : 60A

Maximum Charge Current : 140A

Charger Efficiency : 98%

Contact Now

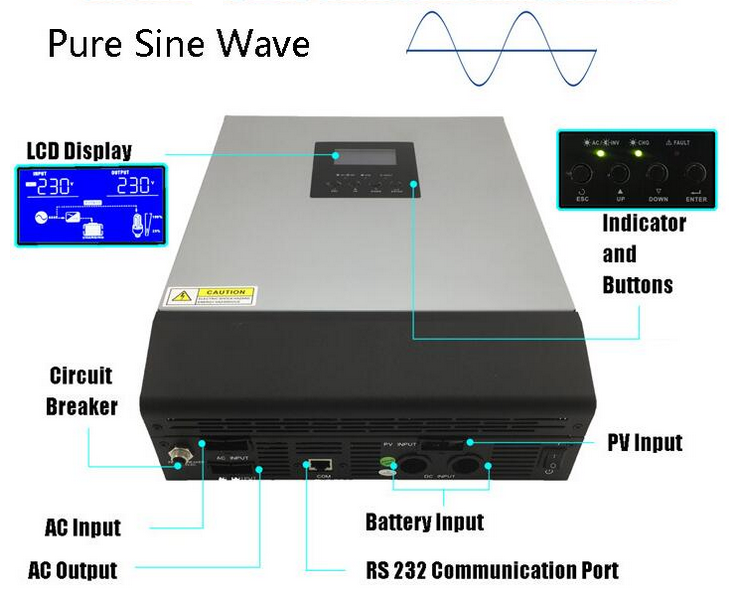

Pure Sine Wave Inverter With MPPT Hybrid Optional Remote Control Panel Available

Product snapshot:


Model : 4-5KVA
Nominal Voltage : 220/230VAC
Nominal Frequency : 50/60HZ
Output Power Factor: 0.99

CNS114 is equipped with MPPT solar charger controller to maximize and regulate DC power from solar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, it is worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, computers, power tool and battery chargers.

Features:

  • Pure sine wave inverter.
  • Built-in MPPT solar charge controller.
  • Selectable charging current based on applications.
  • Configurable AC/Solar input priority via LCD setting.
  • Compatible to mains voltage or generator power.
  • Auto restart while AC is recovering.
  • Overload and short circuit protection.
  • Smart battery charger design for optimized battery performance.
  • Cold start function.
  • Parallel operation with up to 6 units only available for 4KVA/5KVA
  • Optional Remote Control Panel available.

Pure Sine Wave Hybrid Charger Inverter

Specifications

Model CNS114 4000-48 CNS114 5000-48
AC Input Nominal Power 4000VA/3200W 5000VA/4000W
Nominal input voltage 230VAC
Low Line Disconnect 170Vac±4%(Normal) or 90Vac±4% (Wide&Gen)
Low Line Re-connect 180Vac±4%(Normal) or 100Vac±4%(Wide&Gen)
High Line Disconnect 280Vac±4%(Normal) or 280Vac±4%(Wide&Gen)
High Line Re-connect 275 Vac±4%(Normal) or 275Vac±4%(Wide&Gen)
Max AC Input Voltage Max:300VAC
Frequency 50Hz/60Hz(Auto detection)
AC Output

AC Voltage Regulation

(Batt.Mode)

 230VAC±5%
Output Voltage Waveform Pure sine wave
Surge Power 8000VA 10000VA
Transfer Time

10ms(for personal computer);

20ms(for home appliances)
Full load efficiency 93%
Solar charger & AC charger Maximum PV Array Power 4000W

MPPT Range

Operating Voltage

 60VDC~115VDC

Maximum PV Array

Open Circuit Voltage

 145VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 60A
Maximum Charge Current 140A
Standby Power Consumption 2W
Efficiency 98%
Battery& AC charger Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 60VDC
General specifications Operating Temperature Range 0℃~5℃
Storage Temperature -15℃~60℃
Operation humidity

5% to 95% Relative Humidity

(non condensing)
Dimension(L*W*H) 120*295*468mm
Net Weight(kg) 11kg

*Product specifications are subject to change without further notice.
